Assay Data Sheet columns

Data tables Assay Data Sheet columns display experimental data. Assay Data Sheet columns are selected from Assay Models and aggregate data from Published experiments belonging to the Assay Model. Assays filter can be configured to aggregate data from specific Assays.

Assay Data Sheet columns are managed under the Columns > Assay columns tab (1). Click Add entity attribute (2) to add a column displaying an entity attribute to the data table.

Assay data sheet columns tab

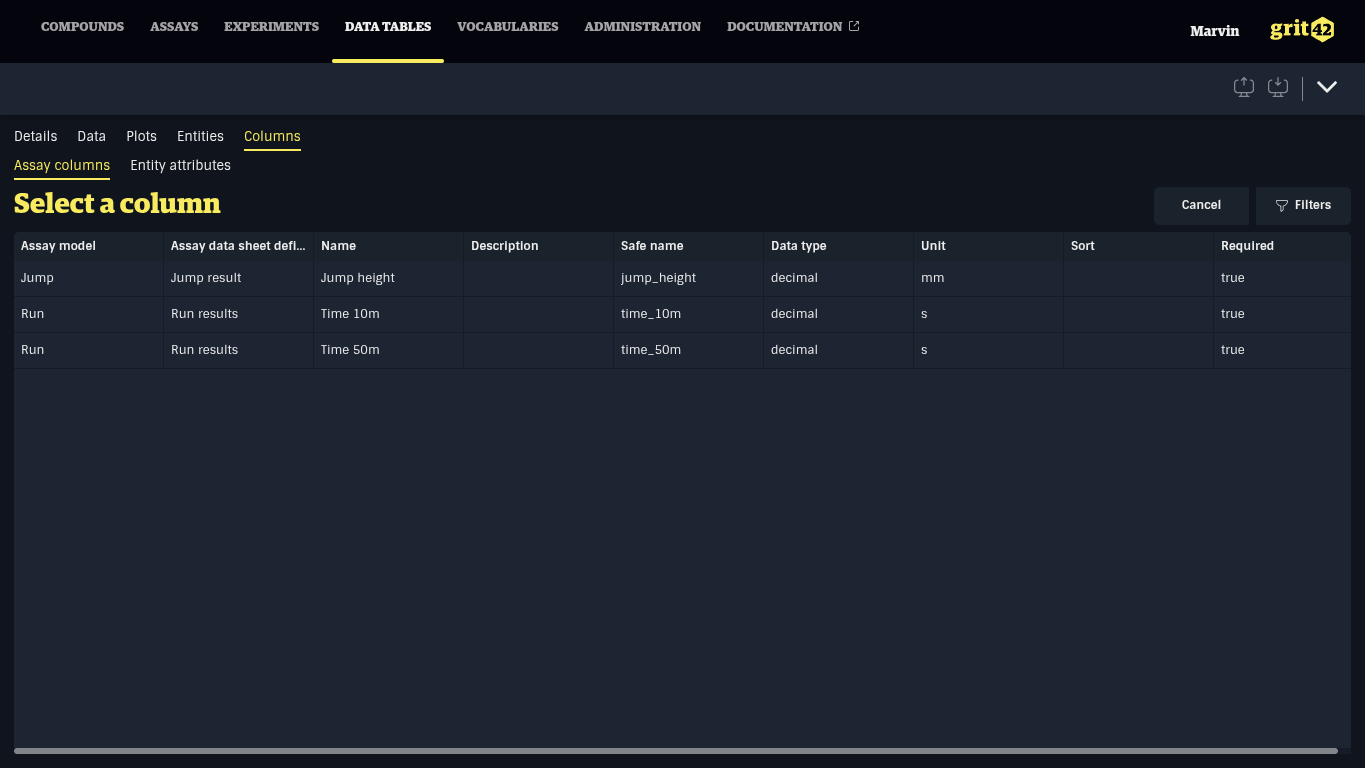

In the list, select the assay data sheet column to add by clicking the row.

Add entity attribute column

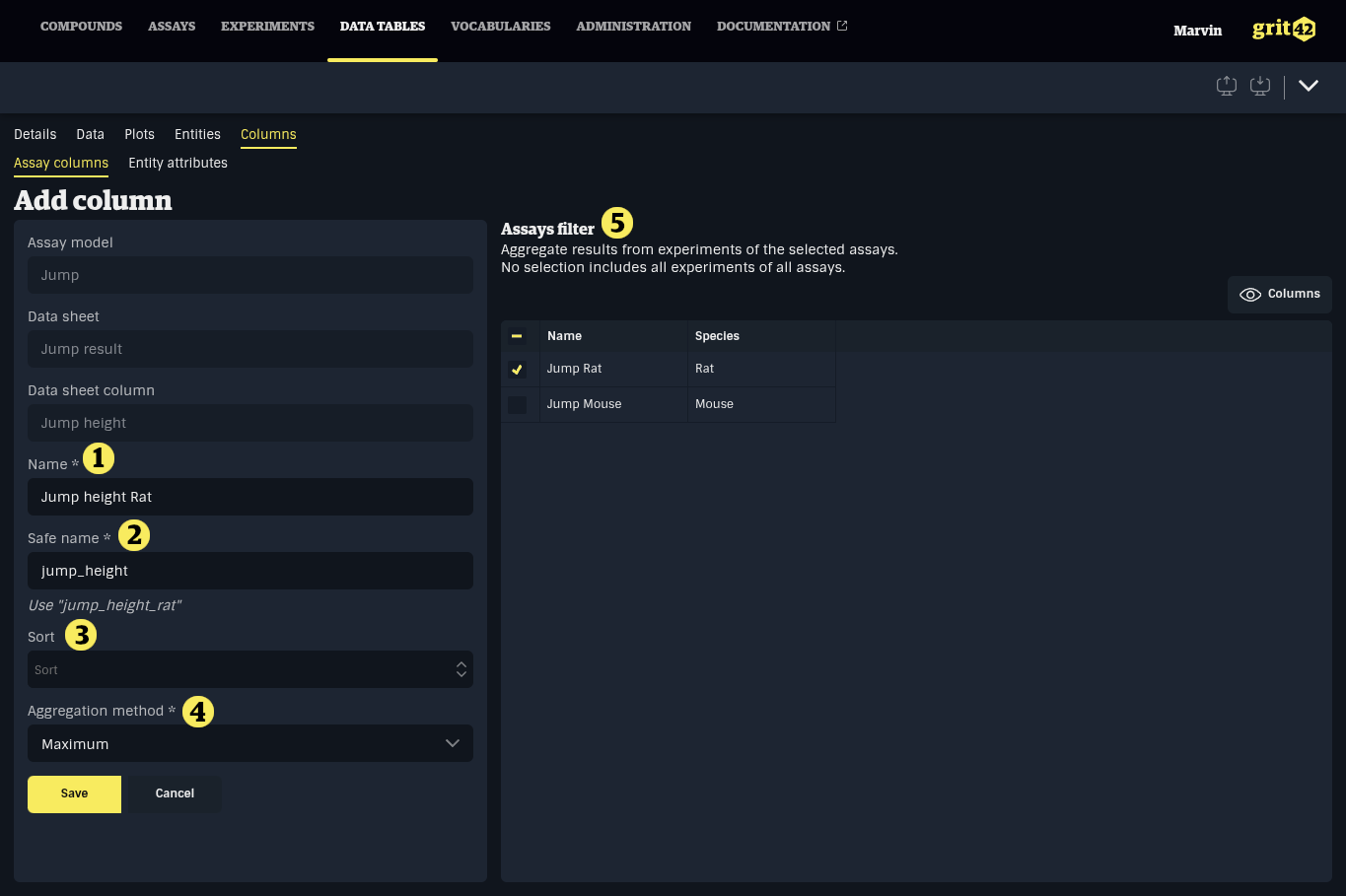

In the form, configure the column details and click Save.

  1. The name of the column displayed in the table.
  2. A machine-friendly name, only alphanumerical characters and underscores (_).
  3. An optional sort indication used to define the default position of the column, a lower value is closer to the start.
  4. The aggregation method that should be used to produce a single value when there are multiple results for the entity.
  5. Assay filters to select a specific subset of assays to get results from.

Add assay column form

info

Suggestion for updating the Safe name of the column will be displayed below the input when making changes to the Name. Click it to accept the suggested value.

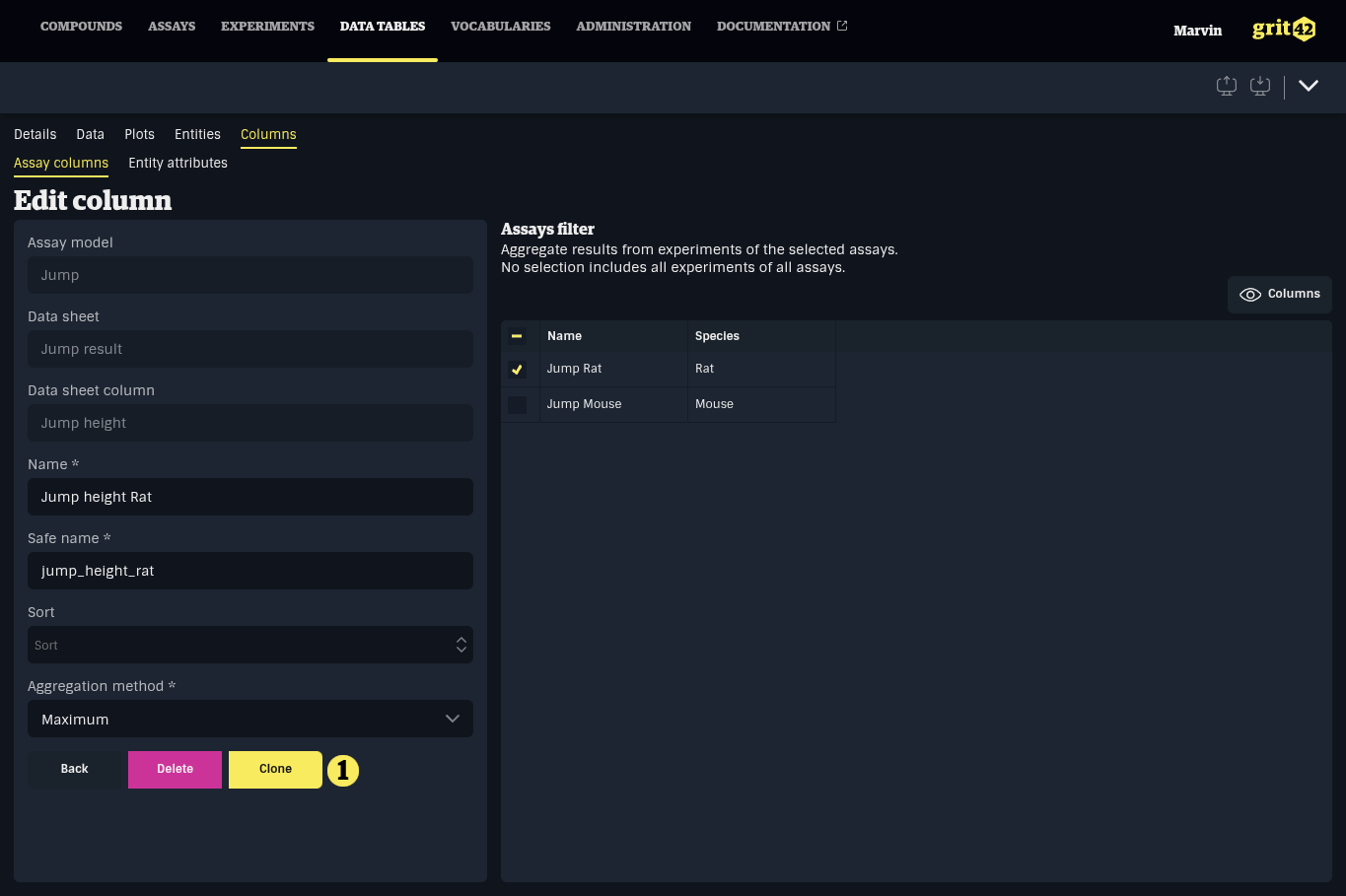

Assay data sheet columns can be cloned by clicking an existing column, then clicking Clone (1).

Edit data sheet column

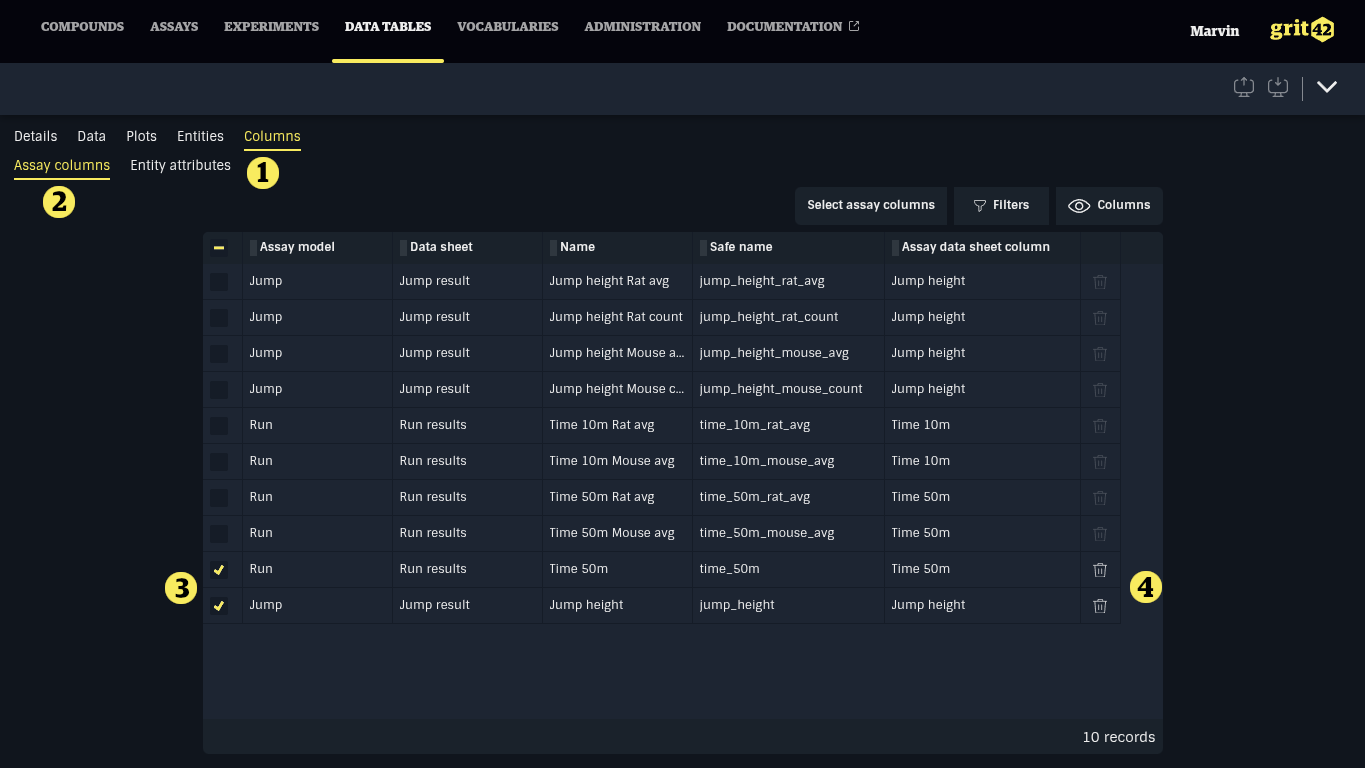

Assay data sheet columns can be removed under Columns > Assay columns by selecting one or more rows in the table clicking the Trash icon at the end of one of the selected rows.

Removing data sheet columns

Aggregation methods​

Available aggregation methods depend on the data type of the assay data sheet column, as follows:

  • All data types:
    • Comma separated list: all values are concatenated in a single value, separated by commas.
    • Latest: shows the value that was updated last
    • Count: the total number of values for the column/entity pair
  • Number:
    • Average
    • Minimum
    • Maximum
    • Standard deviation
  • Date and Datetime
    • Minimum
    • Maximum
  • Boolean
    • AND: true if all values are true
    • OR: true if any value is true

Assays filter​

Assay data sheet columns data is aggregated from Published Experiments of the corresponding Assay model. The Assays filter can be used to target specific Assays of the model. If Assays are selected, only data from Experiments belonging to the selected Assays will be aggregated. If no Assays are selected, all Experiments from all Assays of the Assay Model are used.

This enables grouping data from Assays that may differ only by some Metadata, such as the site or lab the Assay was run in.
